The construction of our LED Light Pockets (2-Year Warranty)
Lightboxes (AKA light pockets) are a popular and visually striking solution for illuminated signage and displays, commonly used in retail, exhibitions, and estate agent settings. Their effectiveness lies in a well-engineered layering system that ensures even light distribution and vibrant image presentation.
At the heart of a lightbox is the luminescent plate, which serves as the primary light source. Directly above this sits the diffusion membrane, a critical layer that softens and evenly spreads the light to eliminate hotspots and shadows. The backlit film, printed with your high-resolution graphics or branding elements, becomes illuminated by the evenly distributed bright white light as it rests in front of the diffuser.
Layer-by-Layer Breakdown of a Light Pocket
Every Luxe Display light pocket is carefully constructed from multiple interlocking layers. Each component, from the acrylic face-panel to the luminescent plate, plays a specific role in delivering crisp, vibrant illumination while maintaining ease of use and durability.
-
Acrylic Face-Panel
Solid and yet flexible, the front panel is permanently bonded to the luminescent panel along the bottom edge, and upwards along both sides 1/3 of the height. This allows you to easily change the poster by flexing the face-panel away at the top against the force of the magnets.
-
Translucent (Backlit) Film
Specially designed for lightbox (AKA light pockets) applications, backlit film's ability to transmit light allows colors to appear bright and saturated, and details to be sharp and clear, enhancing the overall visual impact of the display. Or you can use ordinary paper instead... backlit film vs paper
-
Diffusion Membrane
The primary function of a diffusion membrane is to scatter the light emitted by the light source (such as LEDs). The soft, even light produced by a diffuser enhances the visual appeal of the lightbox display. Colours appear more vibrant, and the details of the image are more clearly visible.
-
Luminescent Plate
Our lightboxes utilise embedded edge-lit LED technology, which is the starting point when it comes to distributing light evenly across the display surface. The luminescent plate (AKA light-panel) incorporates a specialised highly refractive grid, which maximises the output brightness of the plate.

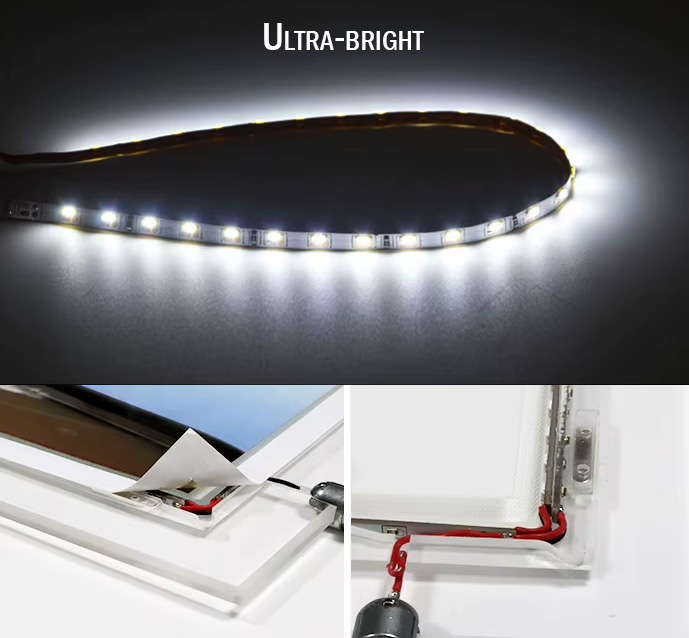

Why We Use Premium 2835 LEDs
The core of any high-performing lightbox is its light source. We use renowned 2835 LED chips due to their exceptional efficiency, brightness, and thermal control—ensuring your displays are long-lasting, cost-effective, and consistently bright.
-
High Efficiency
2835 LEDs are known for their high luminous efficacy, meaning they produce a lot of light for the amount of power they consume. You’ll use less energy, and your electricity bills will be lower.
-
Excellent Lumen Output
The improved thermal management and design of the 2835 LED allow it to achieve a higher lumen-output (a measure of brightness) per watt of power consumed compared to other LED types. This means that for the same amount of power, a 2835 can produce substantially more light.
-
Superior Thermal Management
The 2835 SMD LED's thermal management is considered superior due to its design and construction, which allows for efficient heat dissipation. This leads to improved performance, longer lifespan (our high-quality 2835s last up to 100,000 hours), and greater reliability compared to other types of LEDs.
The Importance of Consistent Colour and Brightness
A great lightbox doesn’t just light up—it enhances the visuals it displays. Our diffuser system and colour-accurate layers work together to eliminate glare, preserve colour integrity, and ensure every detail of your content is beautifully presented.
-

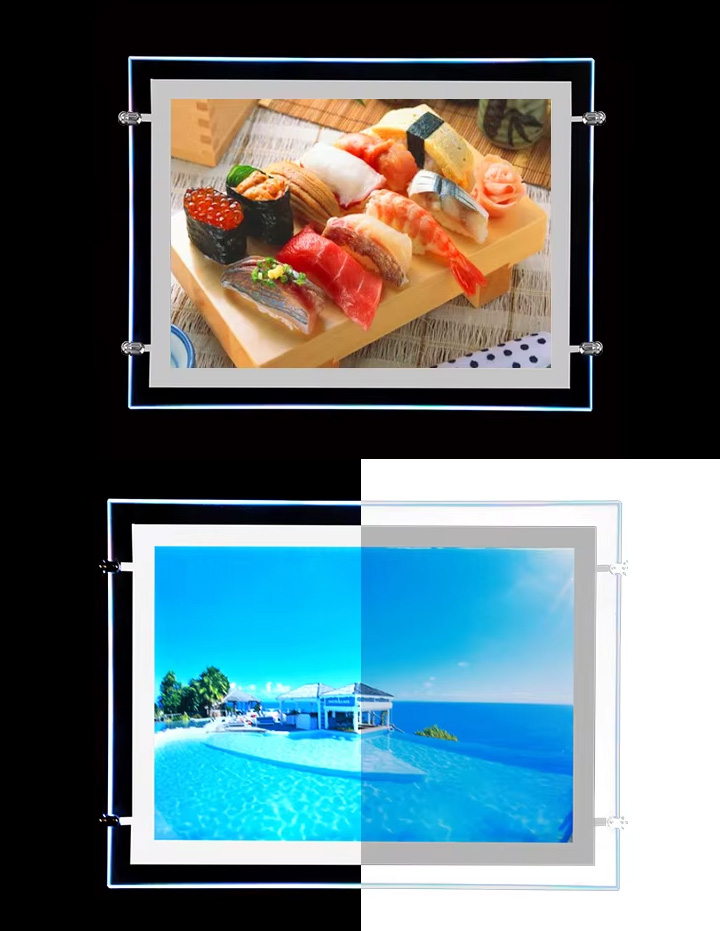

True Colour Perception
Color accuracy directly affects how the viewer perceives the product advertisement and brand. Incorrect color representation can distort the intended visual impact.
Lightboxes are often used to display brand-specific imagery and messaging. If the colors are off, it can lead to a disconnect between the brand's intended image and the customer's perception.
-
Consistent Brightness
A well-diffused light source ensures consistent brightness across the entire viewing area, preventing areas from being washed out or obscured by glare, and eliminating overly bright and dark spots.
-
Glare-free Illumination
Glare makes it difficult to see details on the illuminated surface, hindering the intended purpose of the lightbox. The lightbox’s diffuser layer illuminates glare, allowing fine lines and colour gradients to appear naturally.
-
Improved Visual Appeal
A well-lit poster with even illumination looks more professional and attractive. It creates a more positive impression and attracts people's attention more effectively.

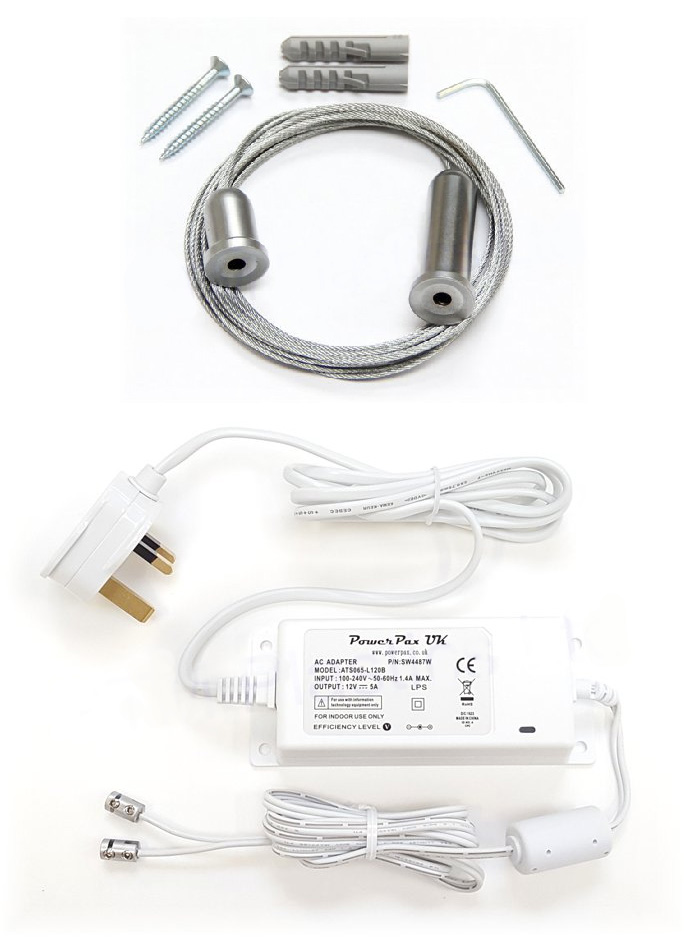

Secure, Adjustable Cable Fixings and Reliable Power
We use floor-to-ceiling cable systems and CE-certified LED drivers to ensure your display is not only secure and adjustable, but also compliant with modern safety standards. Nylon isolators and short-circuit protection come as standard.
-
Cable Fixings (with Isolators)
Floor to ceiling cable kits are popular because they offer a sleek, modern, and versatile way to display products or advertisements (such as posters), especially in retail and estate agent settings.
They allow for the creation of eye-catching displays that maximise vertical space, and they’re easy to install and adjust. The unobtrusive cables create a clean look, putting the focus on the displayed items.
The inner fittings are manufactured from nylon, which is a strong and durable material. Its function is to isolate the cable fixing assembly from metal surfaces, such as the metal inner body of a UPVC window.
-
LED Drivers (CE Certified)
Our LED drivers (AKA power supplies) have been manufactured in compliance with European Union (EU) safety standards.
Power supplies with current overload and short-circuit protection are superior because they safeguard both the power supply itself and your illuminated light pocket display from damage caused by excessive current flow.

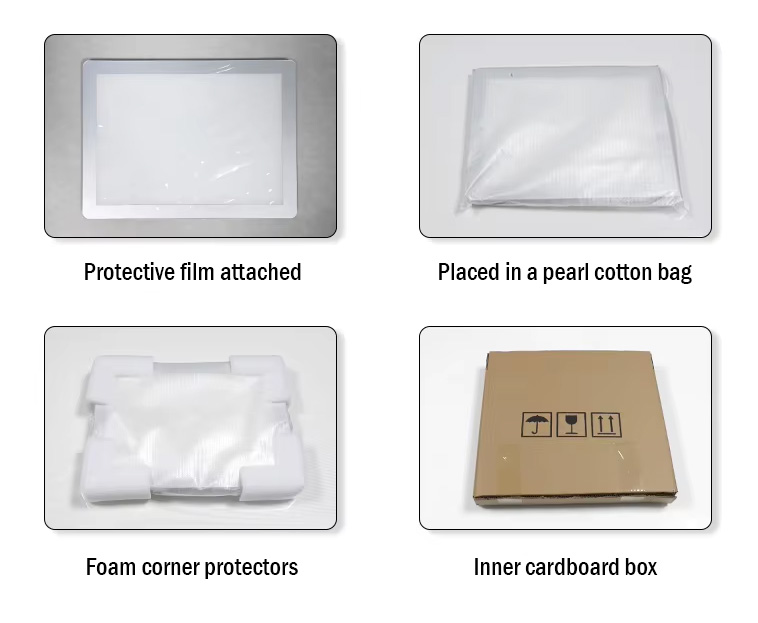

Protective Packaging for Safe Delivery
Your displays are valuable—and we treat them that way. From protective film to shock-absorbing EPE foam and custom inner cartons, every product is professionally packed to arrive in perfect condition, ready to install.
-
Protective Film
The protective film on acrylic sheets prevents scratches, dust, and fingerprints from damaging the surface during fabrication, storage, and transportation. This ensures the acrylic sheet arrives in pristine condition, ready for use.
-
Pearl Cotton Bags
Pearl cotton, also known as EPE (Expanded Polyethylene), is made up of tiny, closed cells filled with air, creating a soft and springy material that absorbs shocks and vibrations. This cushioning effect adds an extra layer of protection to your displays.
-
Impact Resistance
Our EPE foam corner protectors are lightweight, flexible, and also have excellent cushioning properties. This combination of features allows them to absorb impacts and distribute force.
-
Inner Cardboard Box
High-quality, custom-sized inner cardboard boxes are crucial for product protection during shipping and handling.
Built to Last – Backed by a 2-Year Warranty
All our LED light pockets come with a full 2-year warranty, covering both materials and performance. It’s just one more reason Luxe Display Systems is the trusted choice for estate agents, retailers, and commercial interiors nationwide.
It’s our way of standing by the quality engineered into every light pocket — and backing it with the service you expect from Luxe Display Systems.
